Build in Joist Hangers (Heavy Huty)

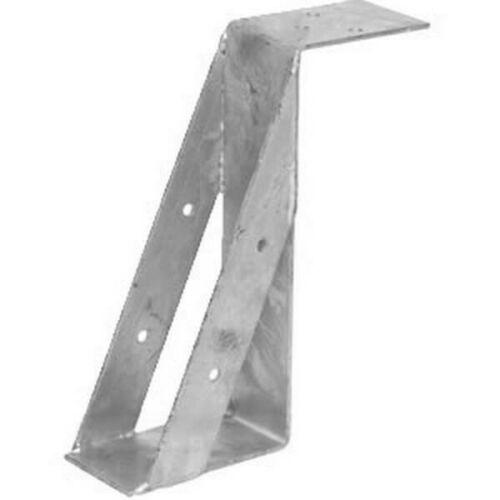

Build In Single Piece Joist Hangers CE Marked and tested to BS EN 845-1:2003 The standard Single Piece Masonry Hanger is designed for building into brickwork or blockwork. As standard all hangers are manufactured from 2.0mm thick pre-galvanised steel to BS EN 10346 : 2009, DX51D + G600 compliant with BS6178: Part 1:1990 and to the requirements of BS5268. Wide top flange design offers increased loading capacity on masonry with a minimum crushing strength of 2.8N/mm2 and above. Hangers 150mm deep and over are manufactured 10mm less to allow for notching and regularisation of timber joists. All hangers feature 75mm bearing surface and pre-punched side gussets to allow nail fixing into timber joists with 30 x 3.75mm sherardized square twist nails.

Build In Welded Joist Hangers CE Marked and tested to BS EN 845-1:2003 For connecting joists to masonry and supporting beams, build into new brick or block work. Can also be used for timber to timber applications. They eliminate the need to build around joists or cut holes in facing brick work. These joist hangers comply with the requirements of B.S. 6178 Part 1, 1990. They are stitch welded and galvanised to BS EN ISO 1461.
